STM32F030K6T6: A High-Performance Core Component for Embedded Systems

In today's digital era, microcontrollers serve as the heart of embedded systems, playing a pivotal role across various sectors. They are extensively utilized in medical devices, automotive electronics, industrial control, consumer electronics, and communication equipment. Among these microcontrollers, STM32F030K6T6 stands out due to its high performance, low power consumption, and abundant peripheral interfaces. This article delves into the technical features, application fields, and the significance of STM32F030K6T6 in modern electronic systems. STM32F030K6T6, a microcontroller from STMicroelectronics, belongs to the STM32F0 series and is based on the ARM Cortex-M0 core. It integrates a high-performance ARM Cortex-M0 32-bit RISC core running at up to 48 MHz, providing robust data processing capabilities. Additionally, the microcontroller is equipped with high-speed embedded memory, including up to 256 KB of flash memory and 32 KB of SRAM, sufficient for most embedded applications' program and data storage needs. STM32F030K6T6 boasts a diverse range of peripheral interfaces, including multiple I2C, SPI, and USART communication interfaces, as well as a 12-bit ADC, seven general-purpose 16-bit timers, and one advanced control PWM timer. These peripheral interfaces facilitate communication and control with external devices, making STM32F030K6T6 well-suited for various complex embedded application scenarios. Low power consumption is another highlight of STM32F030K6T6. Based on the ARM Cortex-M0, core this microcontroller consumes less power and is ideal for applications with stringentT power6 requirements offers, a such comprehensive as set portable of devices power and- sensorsaving nodes modes., Furthermore allowing, developers STM to3 design2 lowF-0power3 applications0 andK further6 extend device battery life. In terms of packaging, STM32F030K6T6 comes in various package forms, ranging from 20 pins to 64 pins, catering to different applications' packaging size and pin count requirements. This flexibility enables STM32F030K6T6 to be widely used in various space-constrained embedded systems. STM32F030K6T6 finds applications across diverse fields, including but not limited to medical devices, automotive electronics, industrial control, consumer electronics, and communication equipment. In medical devices, STM32F030K6T6 can be used in wearable health monitors and portable medical equipment, providing precise data processing and reliable communication functions. In automotive electronics, it can be utilized in electronic control units (ECUs), in-vehicle infotainment systems, and body control systems, enhancing vehicles' intelligence and safety. In industrial control, STM32F030K6T6 controls industrial automation equipment, sensor nodes, and robots, enabling efficient and precise automated production. In consumer electronics, it can be found in household appliances, smart home devices, and electronic toys, enhancing products' intelligence and user experience. Moreover, STM32F030K6T6 benefits from STMicroelectronics' extensive development tools and documentation support. These tools include compilers, debuggers, simulators, and more, providing developers with comprehensive support from design to debugging. The availability of these resources enables developers to undertake projects more quickly and efficiently, reducing development costs and time. In summary, as a high-performance microcontroller, STM32F030K6T6 stands out with its powerful processing capabilities, abundant peripheral interfaces, low power consumption, and flexible packaging options, playing a crucial role in embedded systems. Whether in medical devices, automotive electronics, or industrial control, STM32F030K6T6 demonstrates exceptional performance and broad application prospects. With the continuous development of the Internet of Things (IoT) and artificial intelligence technologies, STM32F030K6T6 will continue to lead the trend of embedded system development in the future, bringing more convenience and intelligence to our lives.

2025-01-22 14:16:12

Technical Features of PMIC DC-DC Switching Regulator TPS54202DDCR

TPS54202DDCR is a high-performance DC-DC switching regulator from Texas Instruments (TI), belonging to the PMIC (Power Management Integrated Circuit) series. This device, with its extensive functional characteristics and excellent performance, is highly favored in power management applications. This article will delve into the technical features of TPS54202DDCR to provide readers with a better understanding and application of this product. TPS54202DDCR is a 2A synchronous buck converter with an input voltage range of 4.5V to 28V. This means it can handle input voltages from 4.5V to 28V and deliver a maximum current of 2A. This wide input voltage range makes it suitable for various applications, such as 2V and 24V distributed power bus supplies, audio equipment, STBs (Set-Top Boxes), DTVs (Digital Televisions), and other consumer appliances. TPS54202DDCR integrates two switching FETs (Field-Effect Transistors) and features internal loop compensation and a 5ms internal soft-start function. These features significantly reduce the number of external components, simplify circuit design, and enhance system reliability and stability. With a SOT-23 package, TPS54202DDCR achieves high power density while occupying minimal space on the printed circuit board (PCB), making it ideal for applications with stringent space requirements. Another notable feature of TPS54202DDCR is its advanced Eco-mode. This mode maximizes light-load efficiency and reduces power loss through pulse-skipping technology. This characteristic makes TPS54202DDCR particularly outstanding in applications with high energy efficiency requirements, such as battery-powered devices. To reduce electromagnetic interference (EMI), TPS54202DDCR incorporates spread-spectrum operation. By adjusting the switching frequency, spread-spectrum operation effectively lowers EMI and improves the system's electromagnetic compatibility. This is crucial for applications that need to meet strict electromagnetic compatibility standards. TPS54202DDCR also boasts multiple protection features to ensure stable system operation. Cycle-by-cycle current limiting on the high-side MOSFET protects the converter from overload conditions and prevents current runaway. Additionally, freewheeling current limiting on the low-side MOSFET further enhances protection capabilities. If the overcurrent condition persists beyond a preset time, TPS54202DDCR triggers hiccup mode protection to further safeguard the circuit. TPS54202DDCR also features overvoltage protection and thermal shutdown functions. These functions automatically shut down the converter when the voltage is too high or the temperature is too high, thereby protecting the system from damage. TPS54202DDCR operates at a switching frequency of 500kHz, which is relatively high and helps reduce the size of the output capacitor and improve the system's dynamic response performance. The optimized internal compensation network further simplifies the design of the control loop and reduces the number of external components. In conclusion, TPS54202DDCR showcases exceptional performance in power management applications due to its wide input voltage range, high power density, advanced Eco-mode, spread-spectrum operation, multiple protection features, and optimized internal compensation network. These features make TPS54202DDCR an ideal choice for designing efficient and reliable power management systems.

2025-01-22 14:14:03

Analysis of Market Demand for Digital Isolator ADM2582EBRWZ

Digital isolators, serving as crucial components in modern electronic systems, undertake multiple tasks such as signal isolation, circuit protection, and system stability enhancement. Among them, the ADM2582EBRWZ digital isolator from Analog Devices has occupied an important position in the market due to its outstanding performance and wide range of applications. This article will delve into the current market demand for the ADM2582EBRWZ digital isolator, analyzing the driving factors behind it and future trends. I. Current Market Demand In recent years, with the rapid development of emerging technologies such as industrial automation, intelligent manufacturing, and the Internet of Things (IoT), the market demand for digital isolators has shown a trend of rapid growth. The ADM2582EBRWZ, as a high-performance digital isolator, enjoys particularly vigorous market demand. This is mainly attributed to its excellent electrical isolation performance, high-speed data transmission capabilities, and comprehensive protection functions, making it widely used in various industrial control, communication equipment, and power systems. In the field of industrial control, digital isolators isolate circuits of different voltage levels to prevent system crashes caused by electrical interference or faults. The ADM2582EBRWZ, with its high isolation voltage (up to 2500Vrms) and high-speed data transmission rate (up to 16Mbps), plays a crucial role in industrial automation systems, significantly enhancing system reliability and stability. In the field of communication equipment, digital isolators isolate digital and analog signals, preventing signal interference and noise interference, thus improving communication quality. The ADM2582EBRWZ integrates safety functions such as overvoltage protection and short-circuit protection, making it safer and more reliable for use in communication equipment. Moreover, in power systems, digital isolators are widely used in data acquisition, control signal isolation, and fault protection. The ADM2582EBRWZ's high common-mode transient immunity and thermal shutdown protection features enable it to operate stably in complex power environments, providing robust support for the safe operation of power systems. II. Driving Factors of Market Demand Technological Advancements: Continuous technological development has provided technical support for the performance enhancement and cost reduction of digital isolators. The emergence of high-performance digital isolators such as the ADM2582EBRWZ is an important manifestation of technological advancements driving market demand growth.Industrial Automation and Intelligent Manufacturing: The rapid development of industrial automation and intelligent manufacturing has placed higher requirements on the performance, accuracy, and reliability of digital isolators. High-performance digital isolators such as the ADM2582EBRWZ can meet these requirements, becoming important supports in the fields of industrial automation and intelligent manufacturing.Proliferation of IoT Technology: The widespread adoption of IoT technology has expanded the application scenarios of digital isolators in smart homes, intelligent transportation, smart healthcare, and other fields. High-performance digital isolators such as the ADM2582EBRWZ can ensure the stability and security of signal transmission in IoT systems, driving the rapid development of IoT technology.Policy Support: Governments have provided policy support for technological innovation and industrial upgrading, encouraging enterprises to increase R&D investments and enhance product technology levels. This has created a favorable policy environment for the development of the digital isolator industry, promoting market demand growth.III. Future TrendsLooking ahead, with the continued promotion and application of emerging technologies such as Industry 4.0 and the IoT, the market demand for digital isolators will continue to grow rapidly. Meanwhile, as market competition intensifies and technology continues to advance, the performance of digital isolators will continue to improve, costs will decrease, and application fields will expand. For high-performance digital isolators such as the ADM2582EBRWZ, future market trends will include: Technological Innovation: With continuous technological advancements, the performance of digital isolators will continue to improve, such as higher isolation voltages, faster data transmission rates, and stronger protection functions. This will further expand the application fields of digital isolators, meeting the needs of more complex scenarios.Cost Reduction: As market competition intensifies and the effects of large-scale production become apparent, the cost of digital isolators will continue to decrease. This will enable digital isolators to be widely used in more fields, driving the rapid development of the entire industry.Integrated Applications: With the continuous development of IoT, big data, artificial intelligence, and other technologies, digital isolators will deeply integrate with other technologies to form smarter, more efficient, and safer electronic systems. This will bring new development opportunities and challenges for digital isolators.In summary, the ADM2582EBRWZ digital isolator demonstrates strong growth momentum in market demand. With continuous technological advancements and market expansion, its application prospects will become broader. At the same time, facing intense market competition and technological challenges, enterprises need to continuously enhance their strength, strengthen technological innovation and quality management, and adapt to market changes to seize development opportunities.

2025-01-22 11:58:49

Main Application Fields of the ISO1050DUBR Driver

The ISO1050DUBR, a high-performance isolated CAN transceiver integrated circuit launched by Texas Instruments (TI), has found widespread application across multiple industries due to its impressive performance parameters and extensive functionalities. Designed specifically to tackle challenges in harsh industrial environments, this driver integrates various protection mechanisms to ensure reliable operation under extreme conditions. In the field of industrial automation, the ISO1050DUBR plays a crucial role. Within industrial control systems, it achieves isolation between digital and analog signals, effectively protecting the system from electrical interference and damage, thereby enhancing system reliability and stability. This isolation function is vital for preventing noise currents on the data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuits. Therefore, the ISO1050DUBR has become an indispensable component in industrial automation. The ISO1050DUBR also excels in the field of power electronics. In various power electronic devices, it can be used not only for isolating control signals but also for isolating power devices from control circuits, thus protecting electronic equipment and improving system efficiency. With an electrical isolation capability of up to 2500VRMS, as well as protection functions against overvoltage, overcurrent, and overheating, the ISO1050DUBR effectively safeguards connected equipment from high-voltage surges. The electric vehicle sector is another significant application area for the ISO1050DUBR. In the electric drive systems of electric vehicles, it can be used to isolate communication signals between motor control signals and battery management systems, ensuring safety and reliability among subsystems. This is crucial for enhancing the overall performance and safety of electric vehicles. Furthermore, the ISO1050DUBR is widely used in digital communication systems within power systems, such as serial bus communication, data acquisition, and control signal isolation. Its compliance with ISO 11898-2 standards and support for CAN bus transmission rates of up to 1Mbps make it highly efficient and reliable for applications in power systems. In the field of instrumentation, the ISO1050DUBR also plays an important role. In measurement and control systems of various instruments, it can be used to isolate sensor signals, control signals, and data communication signals, ensuring the accuracy and stability of measurements and controls. This is significant for improving the performance and reliability of instrumentation. In addition to the above fields, the ISO1050DUBR is also applied in numerous other sectors, including medical equipment, building and HVAC (Heating, Ventilation, and Air Conditioning) automation, security systems, transportation, and telecommunications. Its outstanding performance parameters and extensive protection functions make it a leader in CAN bus communication systems in these fields. Overall, with its high performance, high isolation capabilities, and comprehensive protection functions, the ISO1050DUBR has found wide application in industrial automation, power electronics, electric vehicles, power systems, instrumentation, medical equipment, and more. Its emergence has not only improved system performance and reliability in these fields but has also injected new vitality into the development of related industries. As technology continues to advance and application fields expand, the ISO1050DUBR is expected to play an even greater role in more sectors.

2025-01-22 11:49:43

ECQ-E1104KZ Film Capacitor Full Parameter Manual: In-depth Interpretation of Voltage/Capacitance/Temperature Characteristics

薄膜电容在工业电源、新能源逆变与汽车电子中的渗透率已突破67%——但选型失误导致的失效率仍高达12%。ECQ-E1104KZ作为松下ECQ-E系列的代表型号，其100nF/275VAC的规格组合已成为X2安规电容的经典之选。本文基于实测数据，拆解其电气参数边界与工程应用要点。 型号命名规则与基础参数速查 核心规格一览：275VAC / 100nF / ±10% 参数项 规格值 测试条件 标称容值 100nF (0.1μF) 1kHz, 20°C 额定电压 275VAC (X2) 50/60Hz 容值精度 ±10% (K级) Standard 损耗角正切 ≤0.1% 1kHz, 20°C 工作温度 -40°C ~ +110°C Ambient Panasonic ECQ-E1104KZ .1K 275V~ IN (L) OUT (N) 电压特性深度分析：额定值与降额曲线 ECQ-E1104KZ采用金属化聚丙烯（PP）薄膜介质。275VAC额定值基于工频定义，但在EMI滤波场景中需考虑高频开关噪声。实测表明，当dv/dt超过特定阈值时，建议按80%额定电压降额使用。对于PFC电路，直流偏压（DC Bias）会导致约5%-12%的容值衰减，设计时需进行容值补偿。 温度特性与可靠性：-40℃至+110℃ 该型号具备极佳的温度稳定性，其温度系数（TCC）约为-200ppm/℃。在110℃极限工况下，额定电压需降至200VAC。通过85℃/85%RH双85测试证明，其在严苛工业环境下具备10,000小时以上的预期寿命，满足工业级高可靠性需求。 典型避坑 FAQ ECQ-E1104KZ能否用于直流高压场合？ 可以，但需考虑DC Bias效应。275VAC对应约390VDC峰值，实际直流工作电压建议不超过250VDC，并预留15%容值衰减裕量。更高直流电压应选用DC专用系列或提升电压等级。 ECQ-E1104KZ与ECQ-E2104KZ有何区别？ 两者容值相同，额量电压分别为275VAC与305VAC。后者适用于更严苛的电网波动环境，如农村电网或工业重载启动场景，封装尺寸与引脚间距基本一致。 如何判断ECQ-E1104KZ是否达到寿命终点？ 主要指标为容值下降超过±10%精度范围，或损耗角正切增大至初始值的2倍以上。离线测试建议使用1kHz LCR表测量，若绝缘电阻低于1000MΩ也应视为失效。 ECQ-E1104KZ在新能源汽车OBC中的应用限制？ 车载充电器（OBC）通常要求-40℃~+125℃工作温度。ECQ-E1104KZ的110℃上限在夏季极端工况下略显不足。建议选用同系列高温扩展型号或通过AEC-Q200认证的车规级型号。

2026-06-27 11:04:13

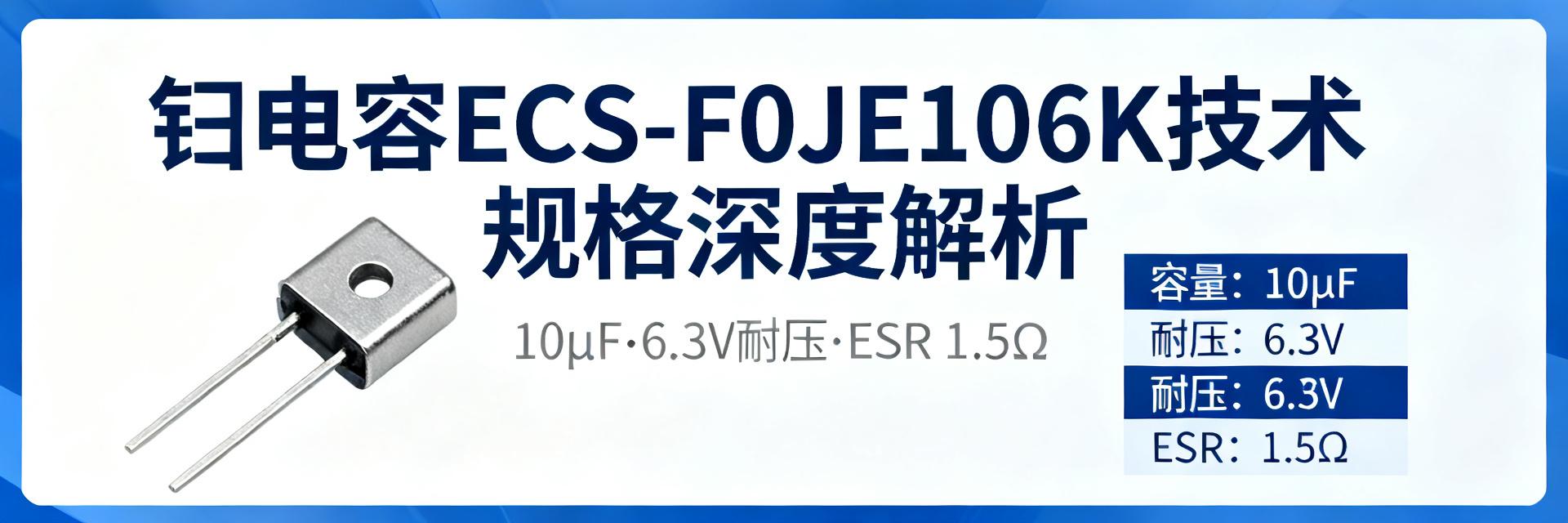

ECS-F0JE106K Specification Deep Analysis: Must-Read Key Data on Capacity, Voltage Rating and ESR

在电源滤波、DC-DC 转换及信号耦合等核心电路中，一颗 10μF 的钽电容如何选型，往往决定了整个系统的稳定性和寿命。ECS-F0JE106K 作为工业级 10μF/6.3V 规格的代表，其数据手册背后隐藏着工程师必须掌握的硬核参数。本文将基于实测与标准，深度解析其物理与电气特性。 核心规格概览：ECS-F0JE106K 的标称参数 参数项 规格数值 备注 额定容量 10μF 测试频率 120Hz 额定电压 6.3V DC 85℃ 以下环境 容量偏差 ±10% (K) 标准工业公差 ESR (100kHz) ~1.5Ω 等效串联电阻 工作温度 -55℃ to +125℃ 高温需进一步降额 物理封装与信号定义 Anode (+) Cathode (-) 106K / 6.3V 关键数据剖析：容量、耐压与 ESR 的实测表现 容量公差与频率特性 “K”级公差意味着 ECS-F0JE106K 的实际容量范围在 9μF 至 11μF 之间。实测表明，在接近数 MHz 的频率点会出现谐振峰，导致有效电容量急剧下降。因此，在 GHz 级的高速数字电路去耦应用中，建议并联 0.1μF 的 MLCC 以弥补高频缺陷。 额定电压与降额设计准则 6.3V 是该电容的物理极限。在 5V 供电轨中，必须降额至额定电压的 80% 左右；而在关键的工业或军工应用中，通常建议实际工作电压不超过额定值的 50%（即 3.15V），以规避瞬态过压导致的灾难性击穿。 ESR 对纹波电流的影响 1.5Ω 的 ESR 决定了电容的发热量。在高负载 DC-DC 模块中，过大的纹波电流（I_rms）会导致电容内部温升。根据 P = I² * ESR 公式，若纹波电流超过 300mA，必须重新评估温升对寿命的影响，必要时选用低 ESR 系列或高分子钽电容。 选型对比：优劣势场景分析 优势场景： 3.3V 系统滤波。由于无“直流偏压效应”，其在 3.3V 下仍保持 10μF 容量，而同体积 MLCC 可能衰减至 3μF。 劣势场景： 高压浪涌环境。若输入端存在频繁的热插拔或电压尖峰，钽电容极易因瞬时大电流而失效。 实战应用与设计检查清单 焊接工艺防护 钽电容对热冲击敏感。回流焊峰值温度应控制在 260℃ 以内，且持续时间不宜超过 10 秒。手工焊接时，烙铁头不可直接接触电容本体，以防外壳微裂纹导致的漏电流增大。 常见问题解答 (FAQ) ECS-F0JE106K 的容量精度 “K” 代表什么？ “K” 代表 ±10% 的容量偏差。这意味着该电容在标准测试条件下，实际容量在 9μF 到 11μF 之间均符合规格要求。 为什么 ECS-F0JE106K 不能用在高电压电路中？ 其额定电压仅为 6.3V。由于钽电容介质层极薄，一旦电压超过阈值，氧化膜会瞬间崩溃短路，导致元件烧毁甚至起火。 ECS-F0JE106K 和普通铝电解电容有什么区别？ 钽电容没有电解液干涸问题，寿命极长，且等效串联电感（ESL）更低，能在更小体积内提供更稳定的宽温性能。 如何降低 ECS-F0JE106K 在电路中的失效风险？ 核心原则：1. 至少 50% 的电压降额；2. 严禁极性反接；3. 在电源入口增加限流电阻或软启动电路，抑制浪涌电流。
